Fused Cast AZS33#

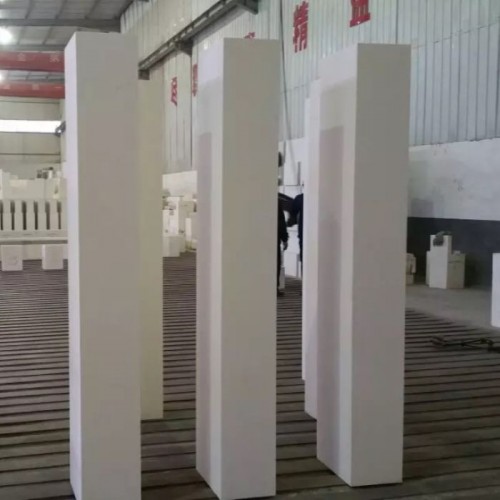

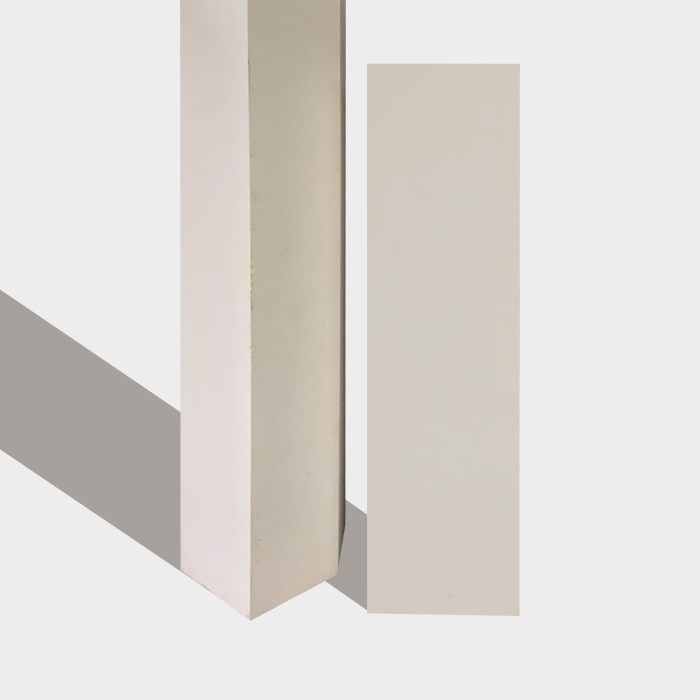

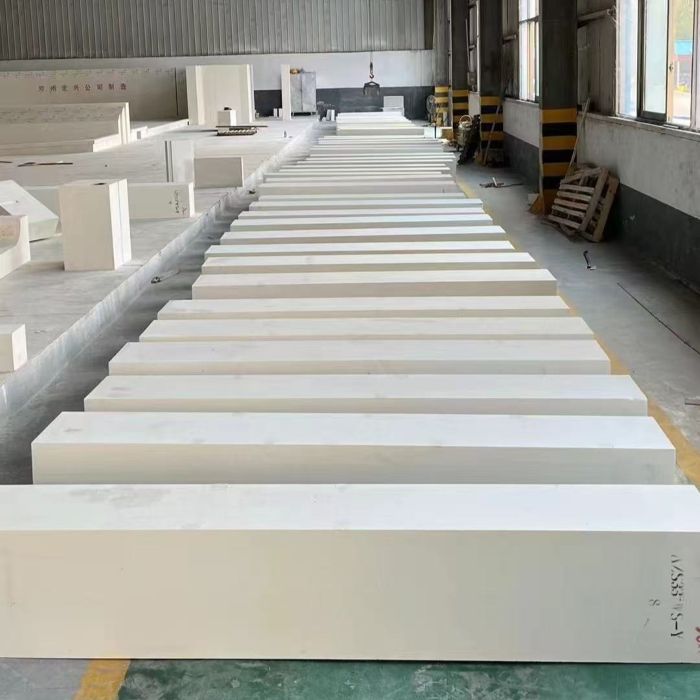

Products of Oxidized Fused Cast AZS Blocks Oxidized fused cast AZS blocks are formulated with high purityraw material and manufactured by long electric arc oxidizedfused cast process. This process combined with superior high purity raw material contributes to high corrosion resistance of oxidized fused cast AZS blocks to melting glass,and minimal contamination to molten glass.

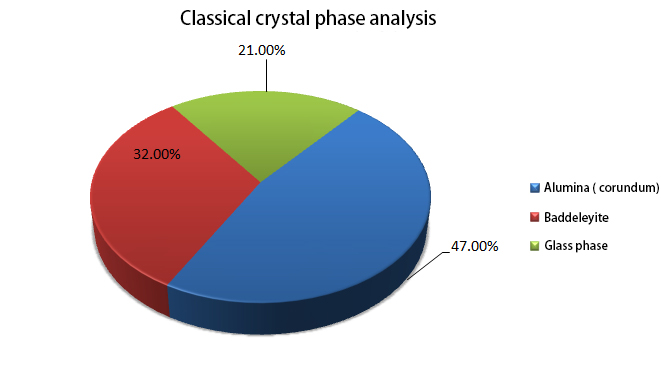

AZS-33# is the Alumina-Zirconia-Silica fused cast material with> 32%ZrOz made by oxidizing process.lts microstructure makes a feature of zirconia,corundum and eutectoid crystals assembly,certain amount of the glassy matrix,resulting in unique properties. The good cast-ability of this material enables the products of many complex and varied shapes.
It is suitable for super-structure of Melter, Sidewall of Working End, Paving of Working End and Fore-hearth,etc.

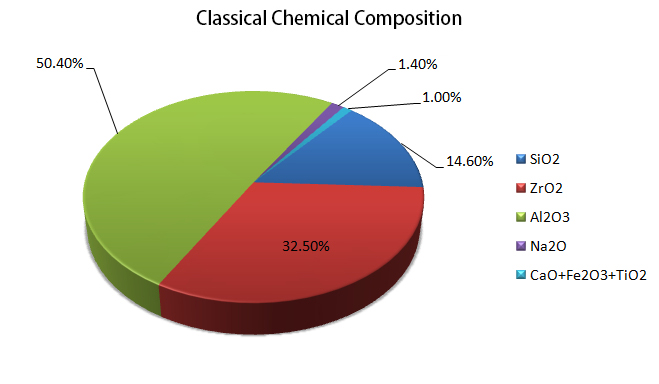

| 项目 / PROJECT | AZS-33（AZS-1681） | ||
|---|---|---|---|
| 化学组成 / Chemical Composition（%） | Al₂O₃ | ≥ 50.00 | |
| ZrO₂ | ≥ 32.50 | ||
| SiO₂ | ≤ 15.50 | ||
| Na₂O + K₂O | ≤ 1.30 | ||
| 体积密度 / Volume Density（g/cm³） | ≥ 3.75 | ||
| 显气孔率 / Apparent Porosity（%） | ≤ 1.2 | ||
| 常温耐压强度 / Compressive Strength At Room Temperature（MPa） | ≥ 300 | ||
| 荷重软化温度/ Refractoriness Under Load（T0.6）（℃ ） | ≥ 1700 | ||
| 气泡析出率 / Foaming Index（1300°C×10h）（%） | ≤ 2.0 | ||
| 抗玻璃液侵蚀速度 / Anti-corrosion Rate by Glass Melt（普通钠钙玻璃 1500°C×36h）（mm/24h） | ≤ 1.5 | ||
| 容重 / Apparent Density（g/cm³） | PT | 3.45 | |
| ZWS | 3.65 | ||
| WS | 3.70 | ||
